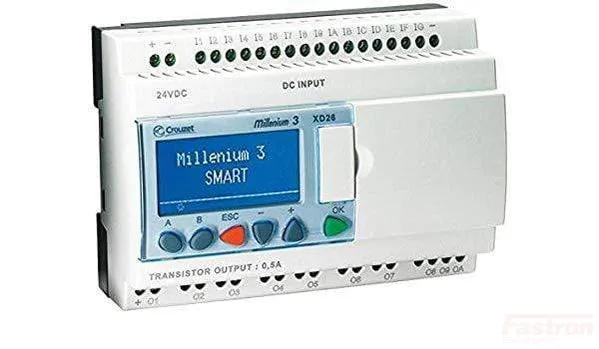

Crouzet Millenium 3 Series Programmable Logic Controllers

Highly visible blue LCD with 4 lines of 18 characters and configurable backlighting
More cost effective solution
Allow the use of the entire library of specific functions blocs of the software workshop
Extended temperature range (-20 °C → 70 °C)
Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR (0-20 mA/Pt100 with converters)
Open to XN network communication extensions, digital I/O, analogue, Pt100 extensions
HMI Screens Available

Specification

Crouzet Part Number	88974164 (XD26-16I/10O R)
Analogue Inputs	0-10VDC (x6)
Digital Inputs	12/24VDC (4.4mA @ 12VDC) (x16)
Digital Outputs	Relay, 5-30VDC,24-250VAC @ 10mA minimum (x10)
PWM SSR Output	12-24VDC @ 500mA (x4)
Expandable	Yes
LCD Display	Yes
Mounting Style	DIN Rail Mount (124.6mm)
Supply Voltage Range	24VAC (21.6 - 28.8VAC)
Termination Style	Screw
Weight	350g
Factory Pack Qty	1
Over Voltage Category	3 in accordance with IEC/EN 60664-1
Pollution Degree	2 in accordance with IEC/EN 61131-2
Protection rating	IP40 (Front), IP20 (Rear)
Mechanical Resistance	Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea
Resistance to HF Interference	Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
Conducted and radiated emissions	Class B () in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 () Except configuration (88 970 1.1 or 88 970 1.2) (88 970 250 or 88 970 270) 88 970 241 class A (class B in a metal enclosure)
Operating Temperature	-20 → 70 °C except CB and XB versions in VDC : -30 → 70 °C ( 40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22
