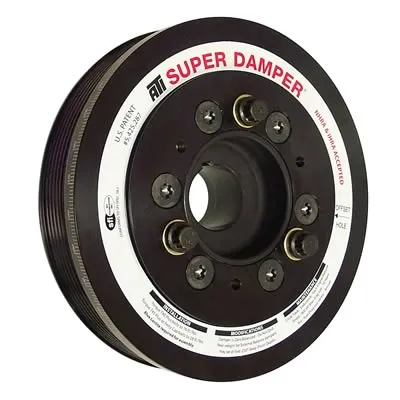

Brand: ATI Performance Products
Manufacturer's Part Number: ATI917276
Part Type: Harmonic Balancers
Product Line: ATI Super Damper Serpentine Series Harmonic Balancers
Automotive Fittings Part Number: ATI-917276
UPC: 800157029677
Engine Balance: Internal
SFI Rating: SFI 18.1
Degree Markings: Yes
Degree Marking Range: 360
Outside Diameter (in.): 6.750
Groove Quantity: 6
Keyway Quantity: One
Harmonic Balancer Material: Aluminum/Steel
Harmonic Balancer Construction: Elastomer
Harmonic Balancer Color: Black zinc chromate
Mounting Hardware Included: No
Quantity: Sold individually.
Notes: Aluminum shell with steel hub. 10 percent underdrive with air conditioning pulley. Contains 40 durometer rubber, not for full race engines.
Description:

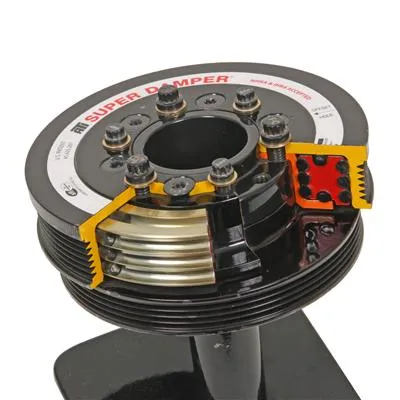

ATI Super Damper Serpentine Series harmonic balancers are patented and feature grooves for serpentine belts machined into the outer damper shell. The dampers come with six outer grooves for standard OEM drive systems—but eight and 10 grooves are available for supercharger or turbo applications. Serpentine dampers are offered in a variety of diameters, and crank hubs may be fitted with a 6-groove serpentine pulley to drive external oil pumps or vehicle accessories. The Serpentine Series Super Dampers fit all ATI GM-front crank hubs and can be adapted to many engine combinations, providing maximum flexibility. They're available in steel or lightweight, hardcoated aluminum.

Features and benefits:

* Eliminates torsional crankshaft vibrations
* Exceeds SFI 18.1 specs
* Black zinc chromate finished
* Tunable, rebuildable, and extremely efficient at all rpms
* Laser-engraved 360 degree timing marks
