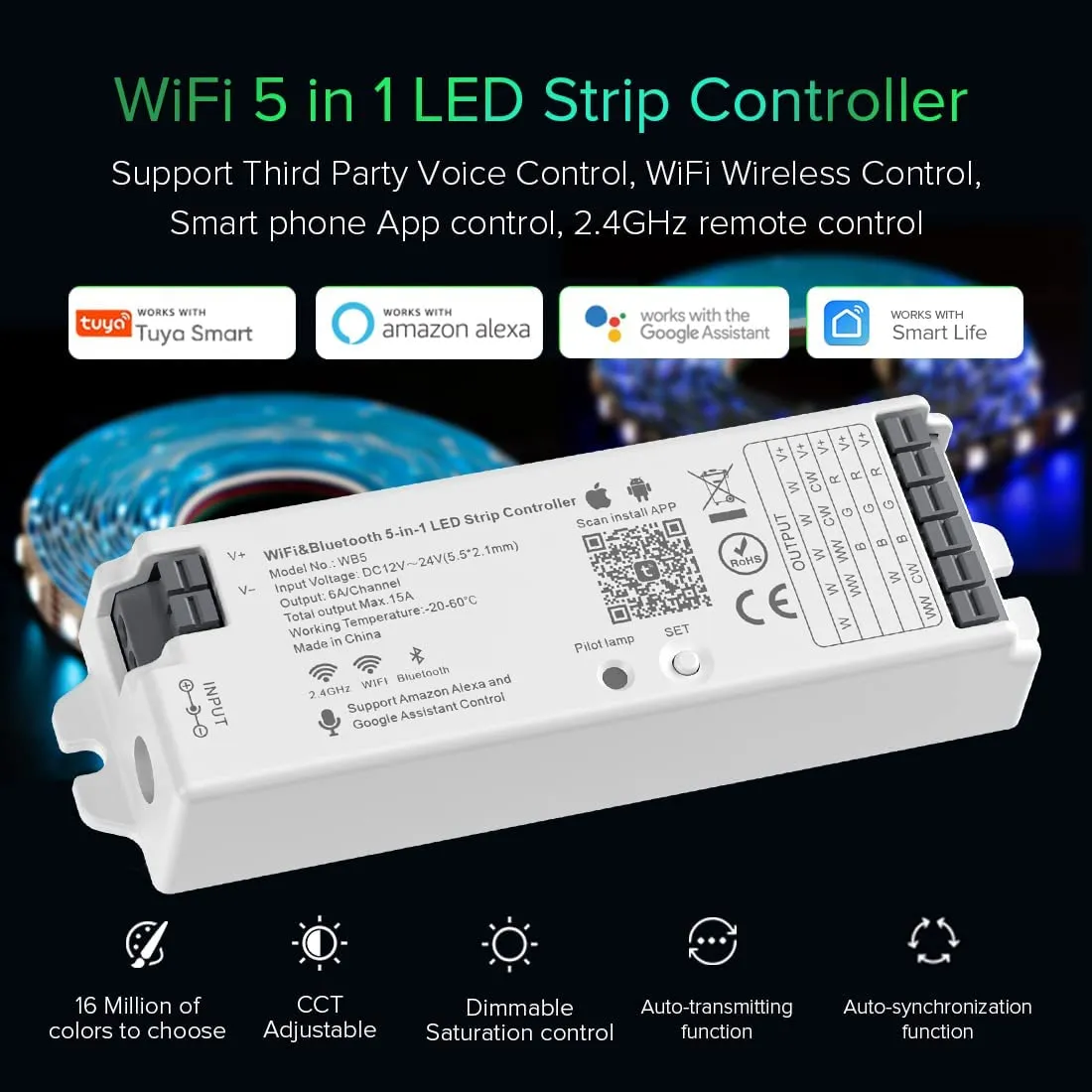

Name: BTF-LIGHTING 5in1 WB5 2.4GHz WiFi LED Controller Compatible with Alexa Google Home Smart Life APP/Tuya Smart APP Control for Monochrome RGB RGBW WW CW RGBCCT LED Strip
SKU: 235624

Product Details ＋

Notice: Customers should take care of the clearance and customs duties.

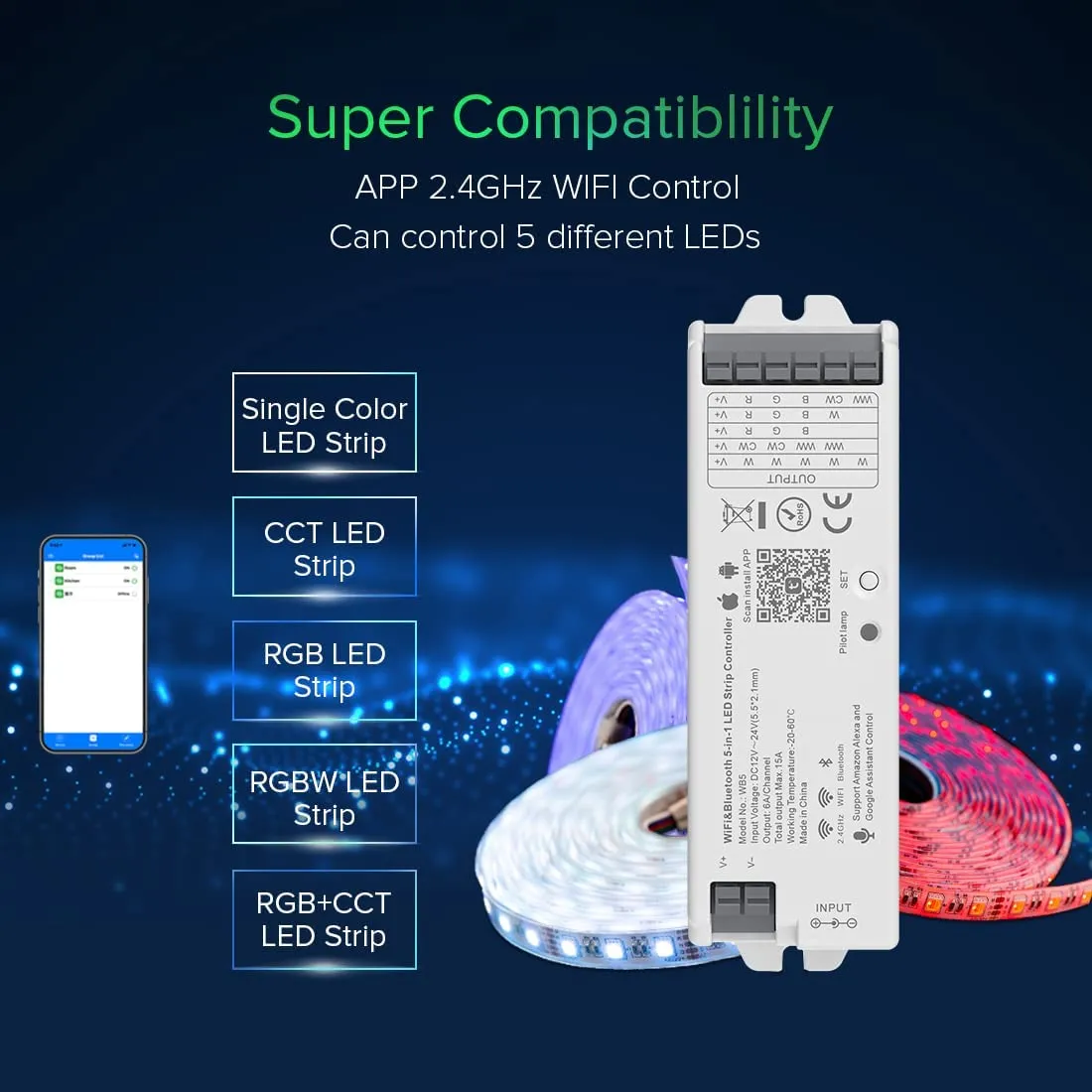

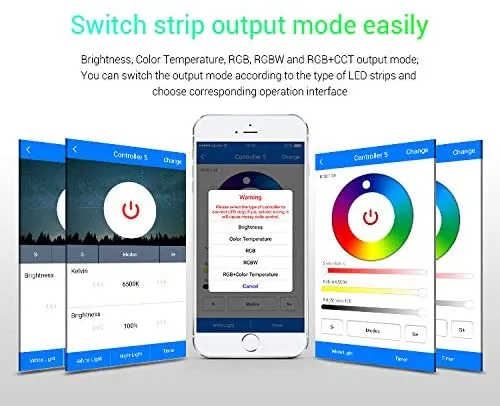

5 in 1 WiFi Controller .WB5= FUT035W FUT036W FUT037W FUT038W FUT039W .FUT035W=CCT (Dual White) FUT036W=Single Color FUT037W=RGB FUT038W=RGBW FUT039W=RGB CCT.This Controller supports to control monochrome, CCT, RGB, RGBW, RGB CCT, WW CW LED strip. You can switch the output mode according to the type of the LED strips you connecting and choose the corresponding operation interface. Work with B1 B2 B3 B4 wall mounted RF remote controller.

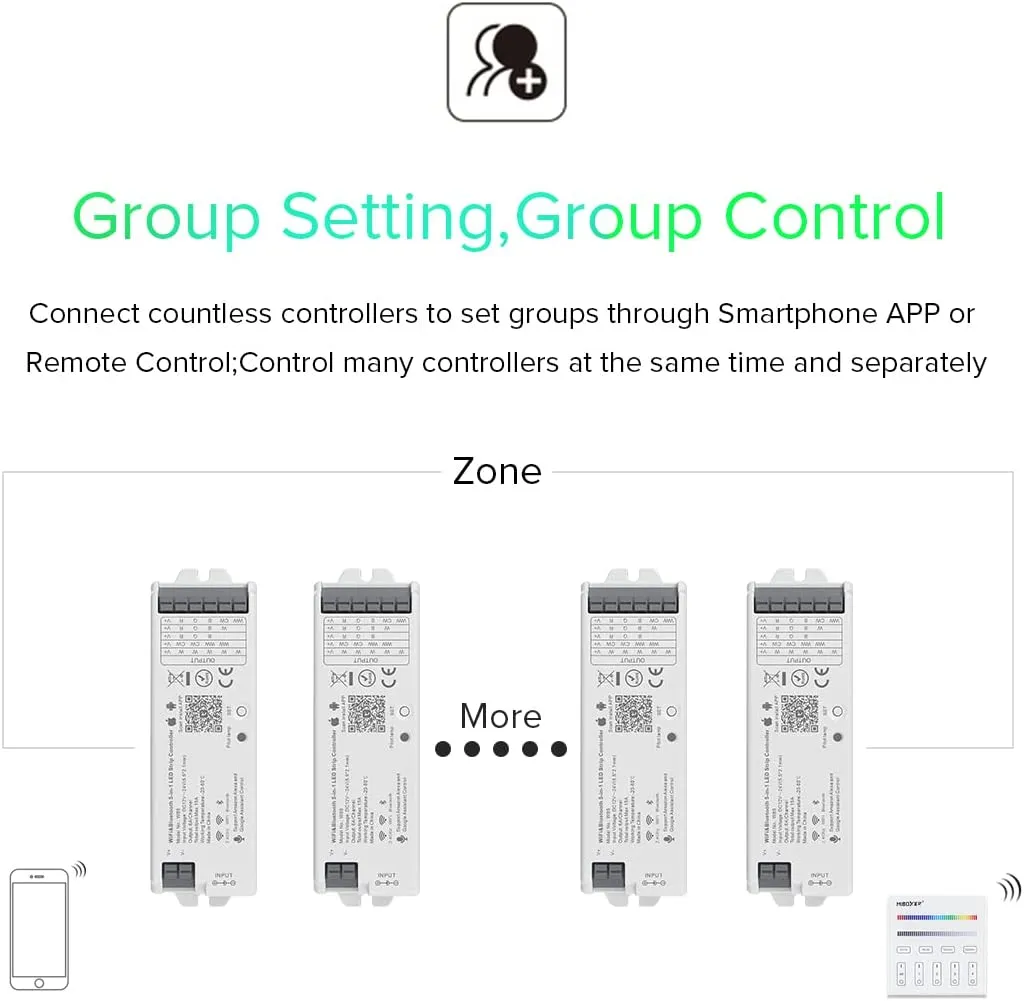

Smart life APP,Tuya Smart APP.Support Third Part Voice Control.This controller works with Alexa, Google Home Assistant. You can turn on/off, adjust the brightness , change the colors of the light strip through voice command. Group Control,Group Setting

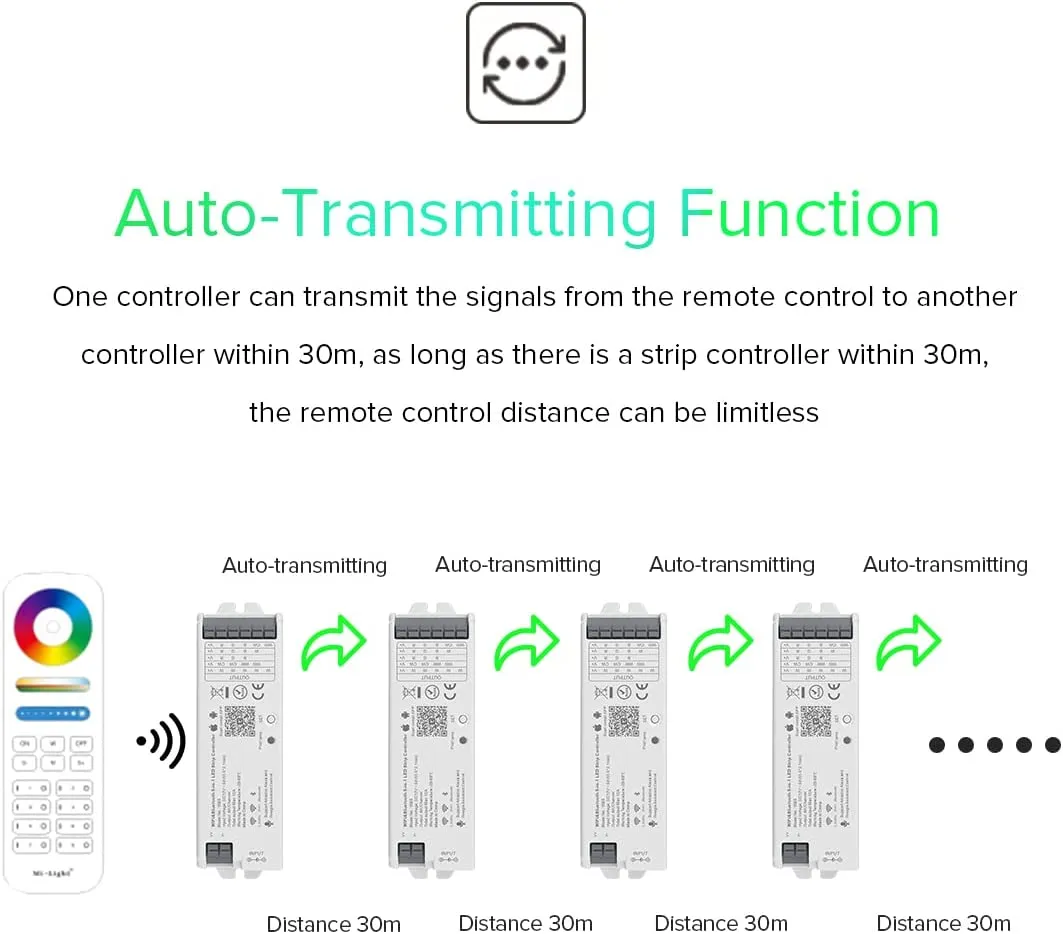

Auto-transmitting function. One controller can transmit the signal from the remote control to the another controller within 30 meters. As long as there is a LED strip controller within 30 meters, the remote control distance can be limitless.
Auto-Synchronization Function.Different controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.
Multiple control methods.Controlled by smartphone APP, 2.4GHz remote and wall panel (Please note that remote and wall panel are not included in the package). Download MIBOXER APP, connect it to your home wifi, then you can control it from anywhere in the world. One remote/smartphone can control multiple controllers simultaneously.

Parameters:

Model: WB5
Product Name: 5 IN 1 WiFi LED Controller
Item size(LxWxH):125x38x23(mm) / 4.9x1.5x0.9(in)
RF: 2.4GHz
Control Distance: 30m (98.42ft)
APP name: Smart Life or Tuya Smart
Input voltage: DC12V or DC24V (It depends on what LED strip you use)
Output: 6A/Channel (Total Output Max 15A) 12V180W 24V360W
Working Temperature: -20-60℃
Communication Mode: WiFi-IEEE 802.11b/g/n 2.4GHz or 2.4G RF
Compatible LED strip: FCOB COB 3014 5630 3528 2835 5050RGB 5050RGBW 5050RGBW CCT 5050 WW CW

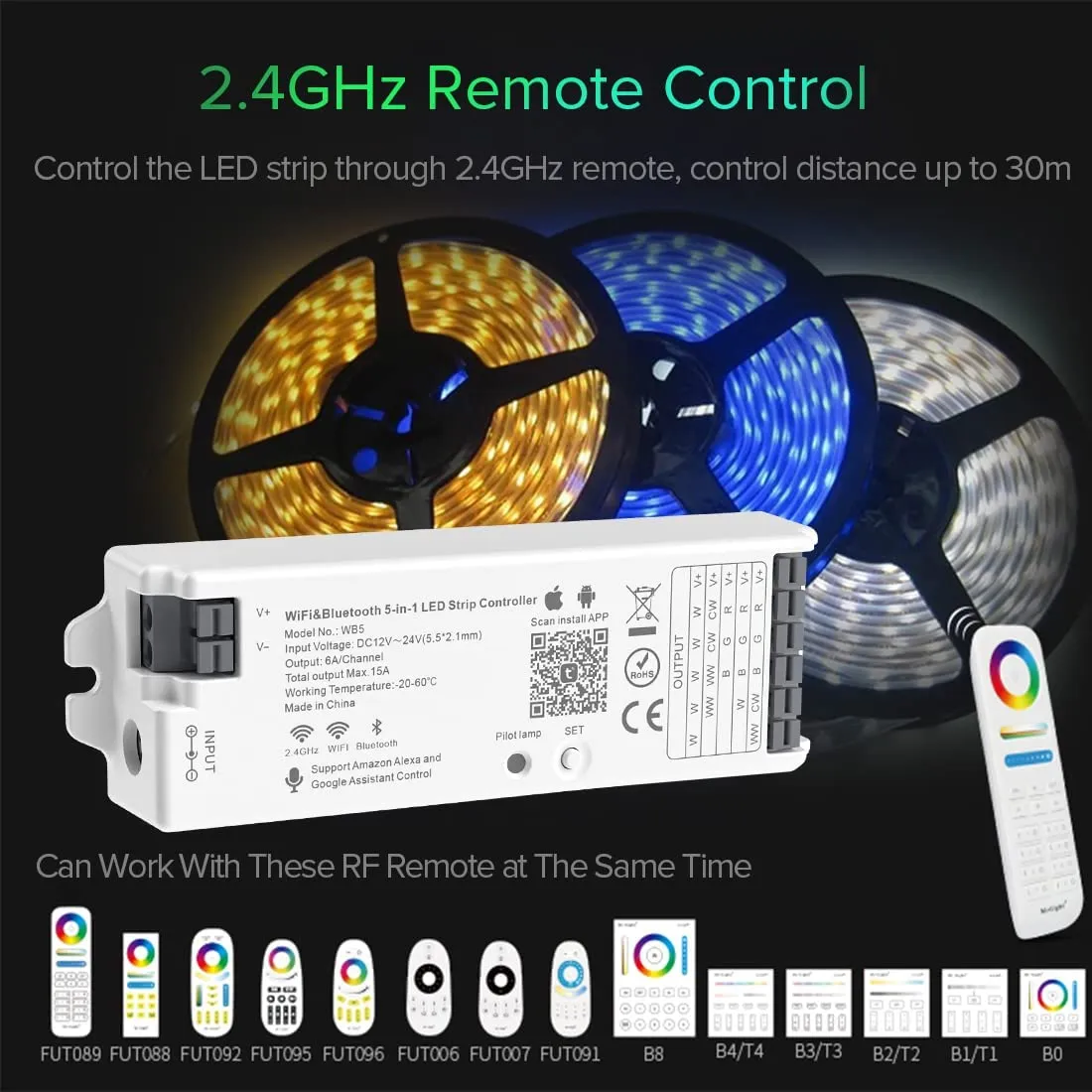

Compatible Remote control :

Remote control series: FUT006/FUT007/FUT92/FUT095/FUT096/FUT088/FUT089
Panel series: B0/B3/T3/B4/T4/B8/FUT087/B1/T1/B2/T2

Attention:

The working voltage is DC12 or 24V, the controller will be broken if the voltage is higher than 24V.
Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of the cathode and anode.
Please don't use controller around the metal area and high magnetic field, otherwise, it will badly affect the control distance

Package included:

1x 5 in 1 WiFi controller (The LED strip, remote controller or power supply is not included)
