Details
A Reference In Image Quality

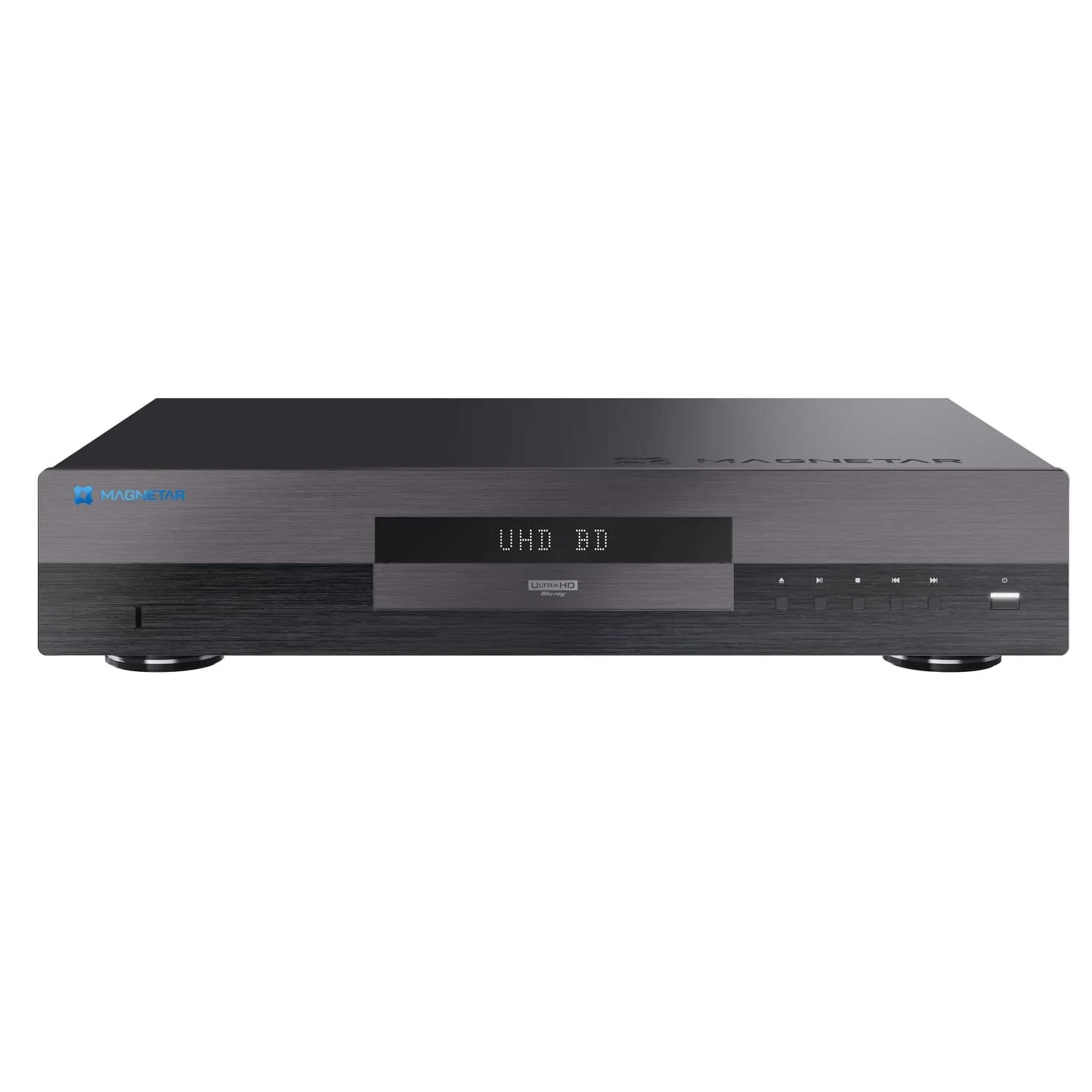

The UDP800 4K UHD Blu-ray player features advanced image decoding and processing technology, with 4K ultra HD and HDR support, including Dolby Vision and HDR10 , providing clear and sharp picture and rich colors.
The UDP800 brings your DVDs, Blu-rays, 4K UHD discs and media files to life with a sharp and clear picture quality and crisp details that are pleasing to the eye. The UDP800 can convert low resolution video sources up to 4K 50/60Hz (3840 x 2160) resolution. Four times the resolution of full HD 1080p, enhancing your home video experience.
With eye-popping brightness, contrast and gorgeous colors, the picture is rich and full. Enjoy vivid colors, even in low light and backlit environments. UDP800 supports HDR10, HDR10 and Dolby Vision with stunning HDR to SDR conversion.
The UDP800 can decode DSD64/128, multi-channel DSD64, and 192kHz/24-bit PCM formats with AIFF, ALAC, APE, FLAC and WAV audio file support. Enjoy 4K HD picture quality without missing any audio detail. UDP800 supports Dolby TrueHD and DTS-HD Master Audio, as well as Dolby Atmos and DTS-X, enabling you to enjoy the best panoramic sound and immersive experience.
Specifications
Disc formats:
- UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

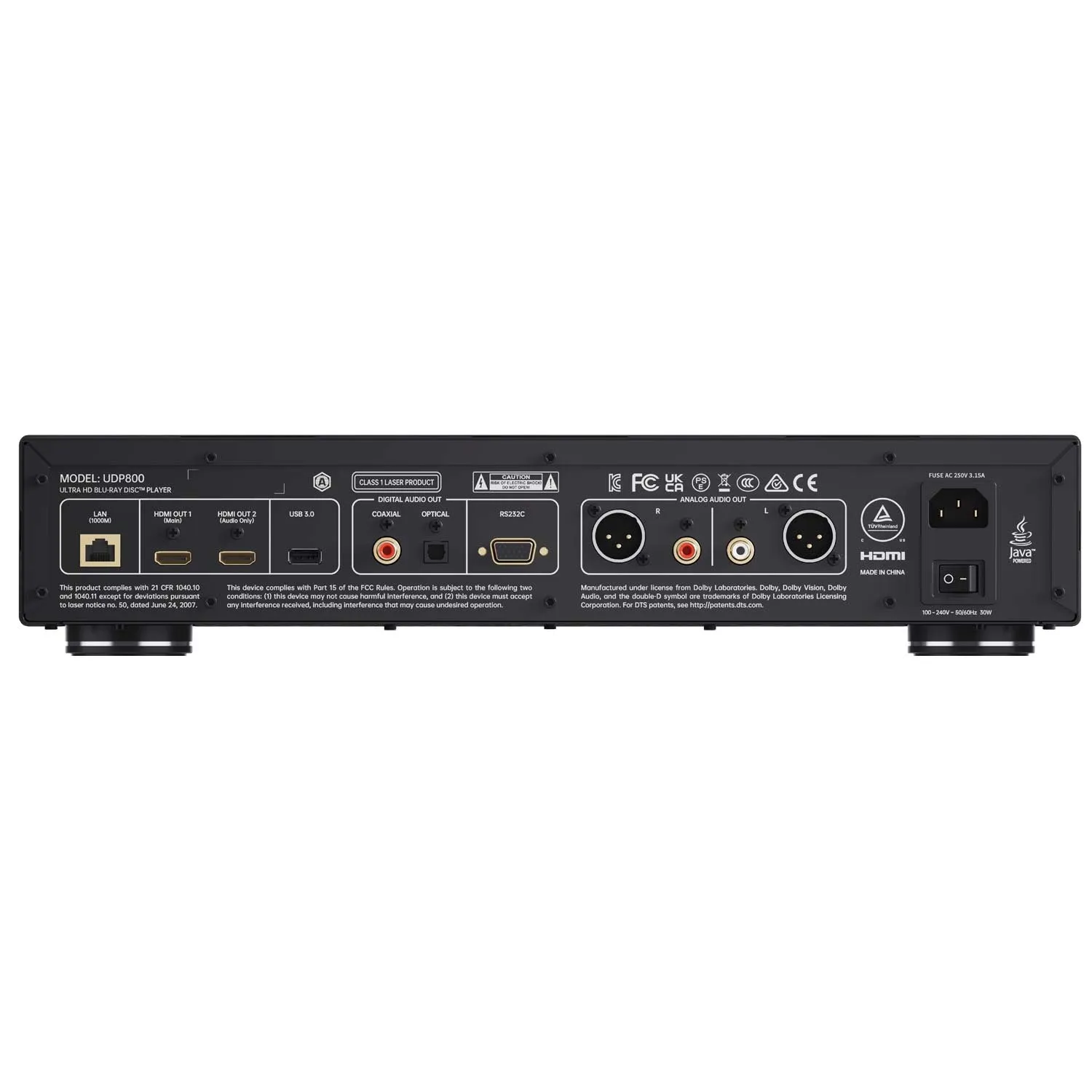

Outputs:
- Analog audio: stereo
- Independent stereo analog audio: XLR balanced output, RCA output
- Optical/coaxial audio: up to 2 channels /192kHz PCM, Dolby Digital, DTS
- HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
- HDMI video: UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct.
Audio:
- Frequency range: 20Hz-20kHz (±0.05dB)
- Signal-to-noise ratio: ≥120dB
- Total harmonic distortion Noise: & LT: 0.00018%
- Output level: (RCA) 2. 1±0.2Vrms. (XLR) 4.2±0.4Vrms
- Dynamic range: AGT: 120dB
- Channel separation: 120dB
General:
- Power supply: AC 100-240V ~, 50/60Hz
- Power consumption: <30W, Standby<0.5W
- Size: 430 mm x 300 mm x 90 mm
- Weight: 6.8kg
- Operating temperature: 5° C ~ 35° C （41° F ~ 95° F）
- Operating humidity: 15% ~ 75%
