User Manual:
• Adopt a high precision capacitive touch IC

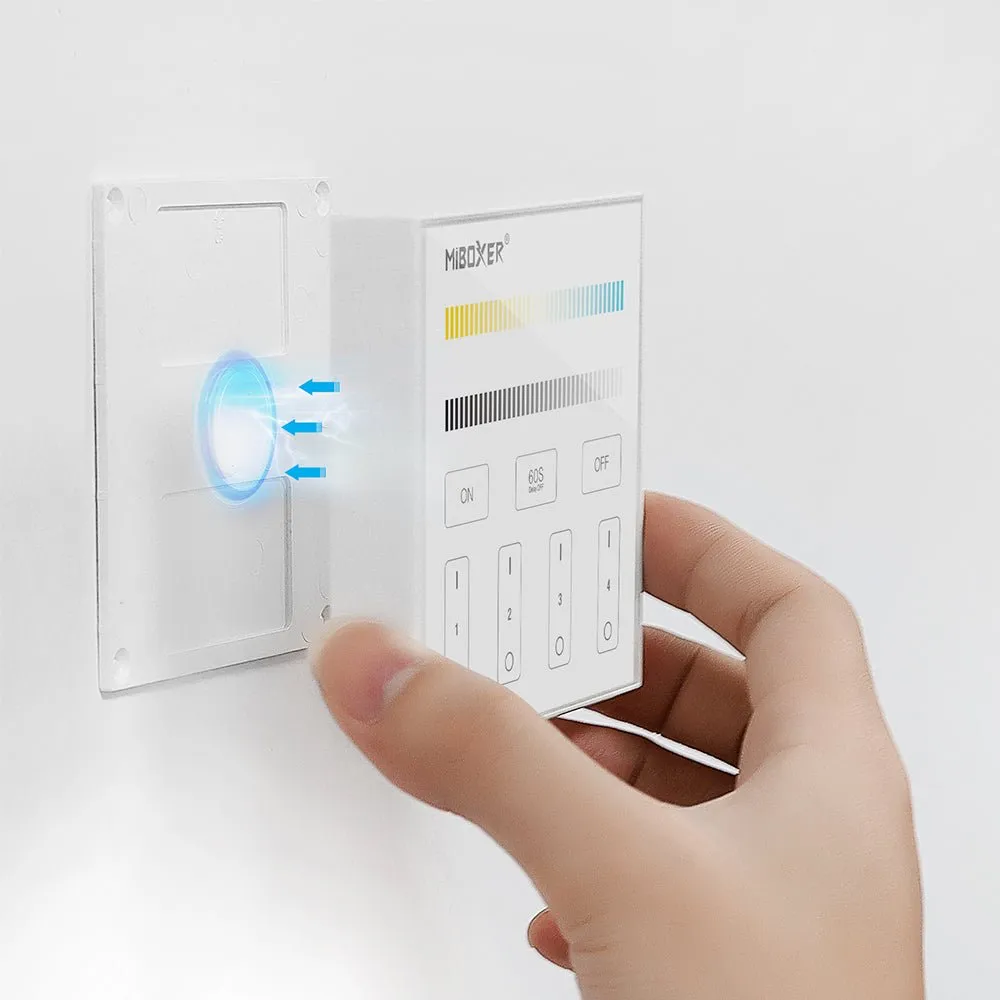

• Magnetic installation
• 2.4G RF wireless transmission technology
• Support MiBoxer/Mi-Light 2.4G series
• Control distance: 30m
• Brightness and color temperature adjustable
Different dynamic mode can be used for various applications
Press 60S / 10 minutes delay off, the light will be off automatically after 60 seconds or 10 minutes
Dim brightness based on your requirements, get luminous lighting feature as you want

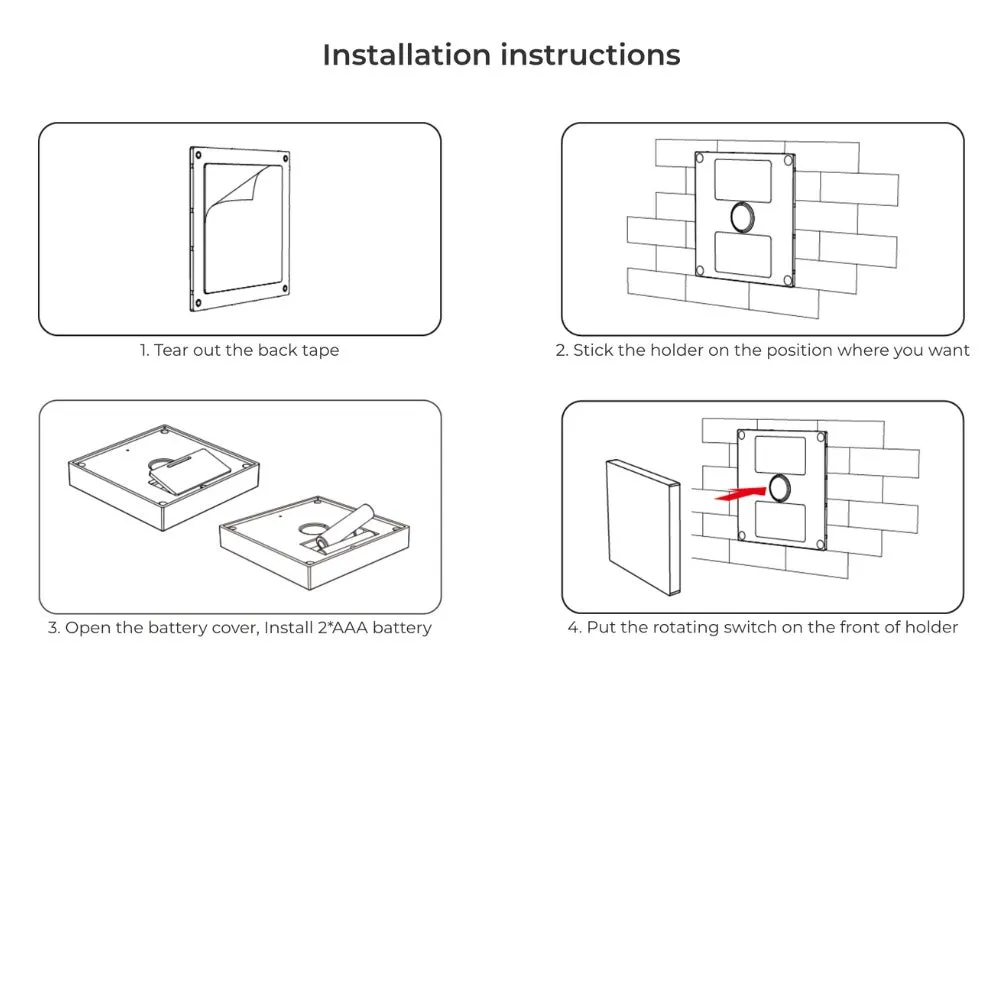

Free installation without wiring,magnetic holder, start your smart life
Specification:

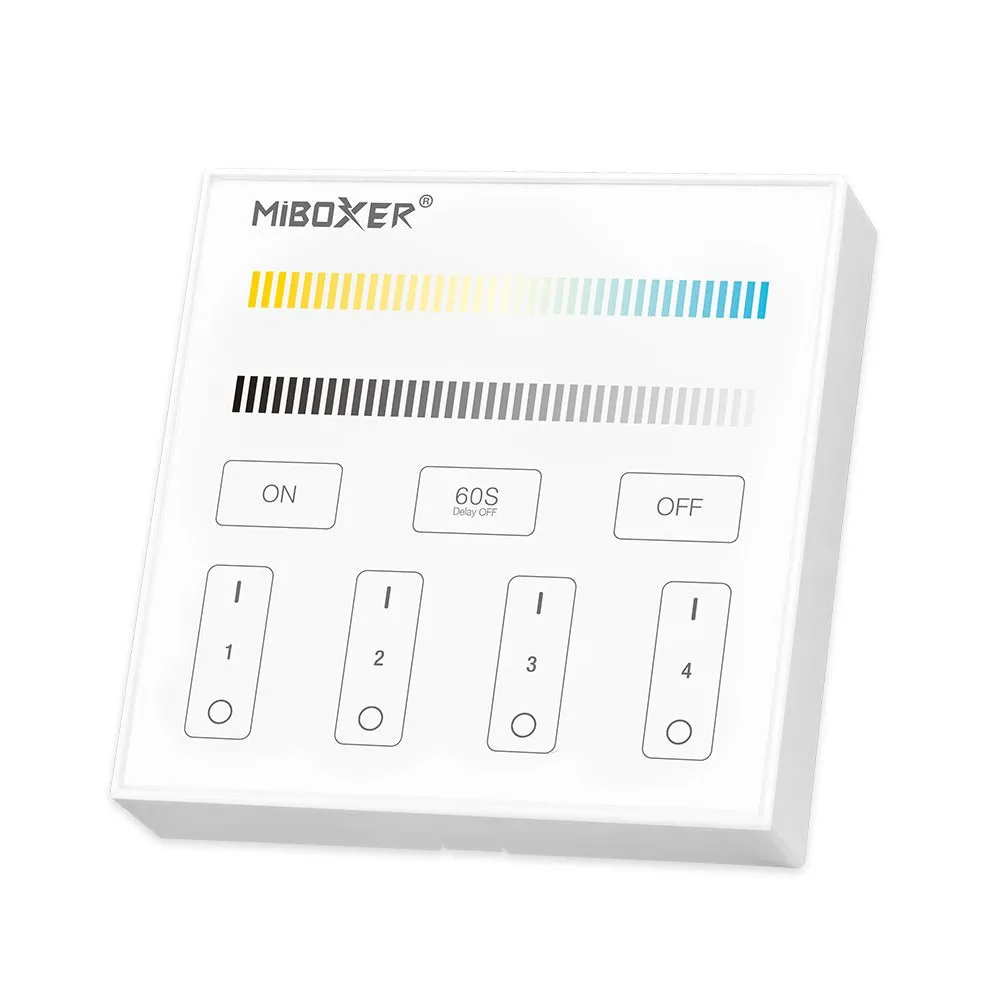

Product - 4-Zone Panel Remote (Color Temperature)
Model - B2 (White)
Colour - CCT

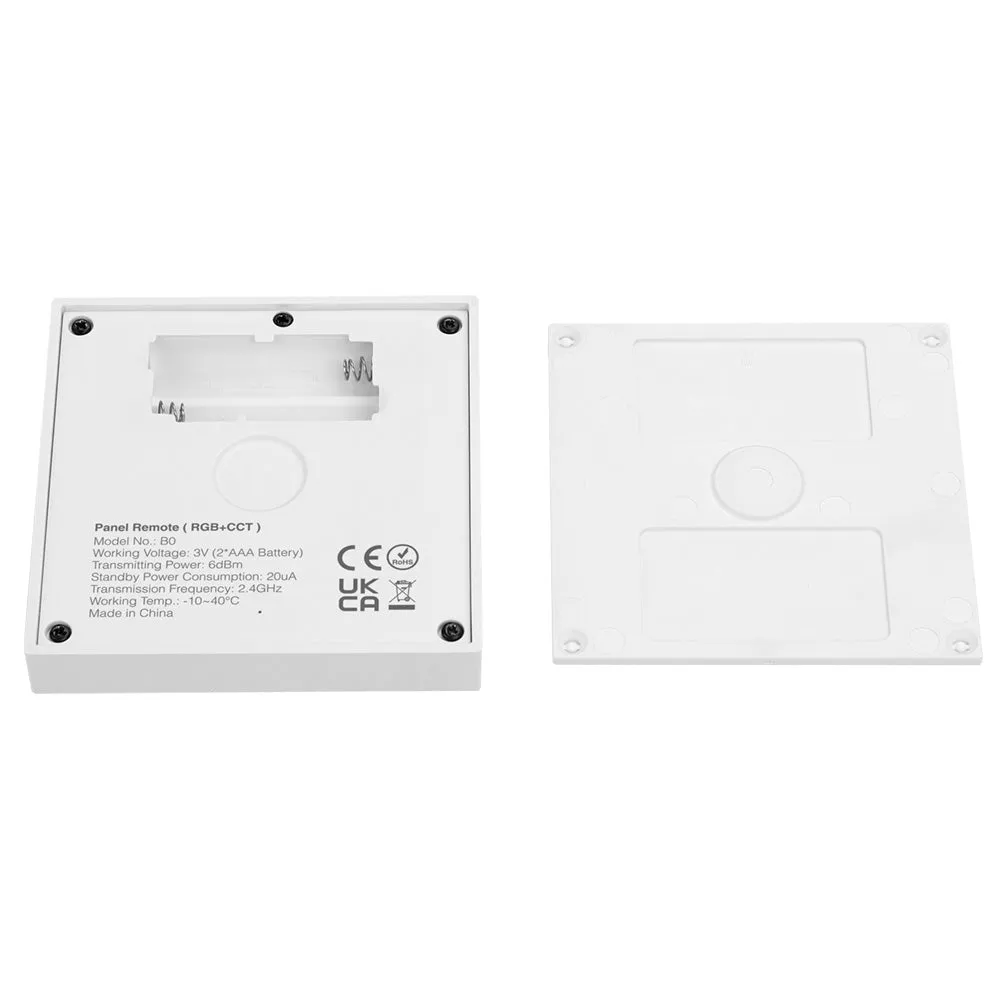

Working Voltage - 3V (AAA * 2PCS)
Standby Power Consumption - 20μA
Transmitting Power - 6dBm
RF - 2.4GHz
Control Distance - 30m
Transmission Frequency - 2400-2483.5MHz
Modulation Method - GFSK
IP Rating - IP20
Working Temperature - -10~40°C
Size - 86mm x 86mm x 16mm
