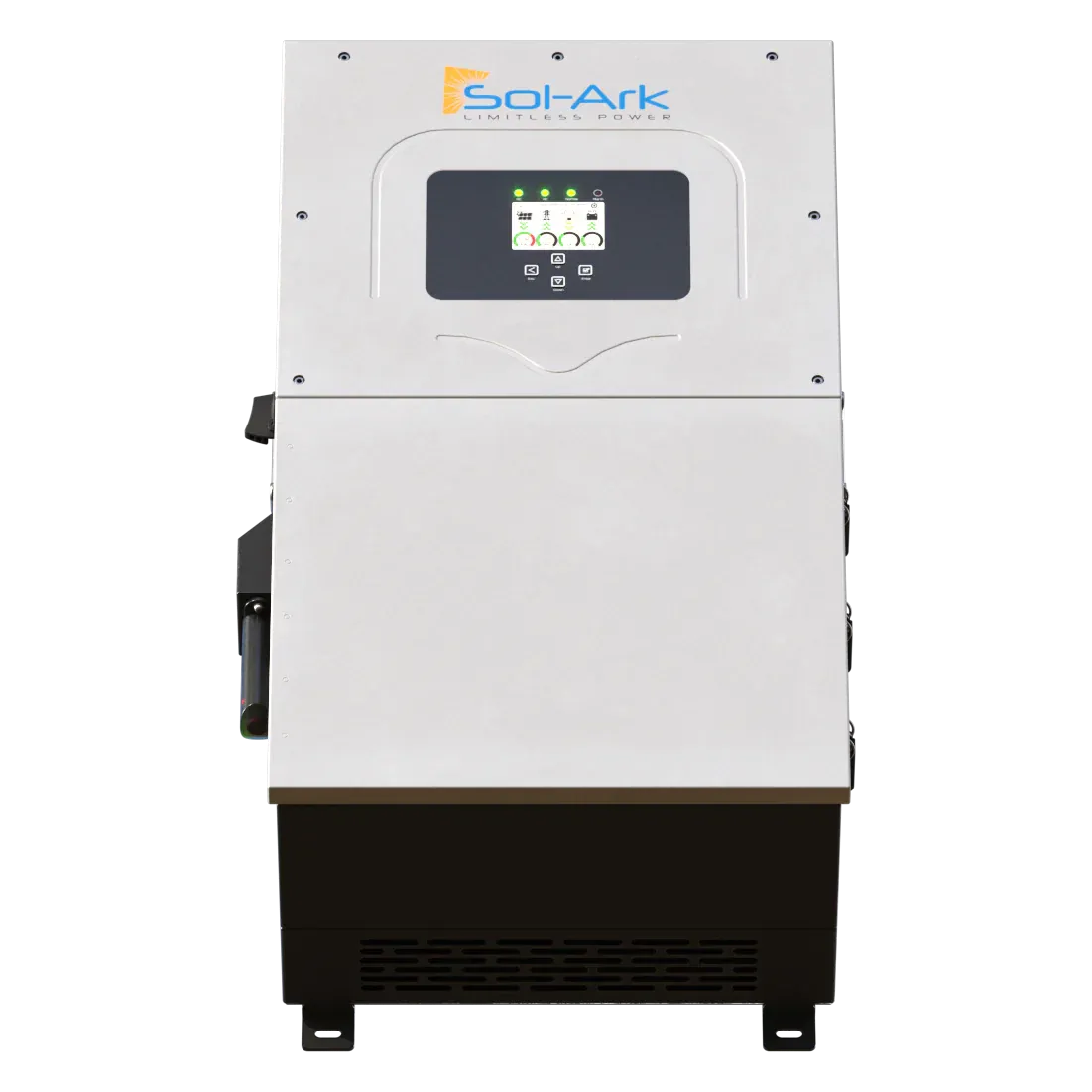

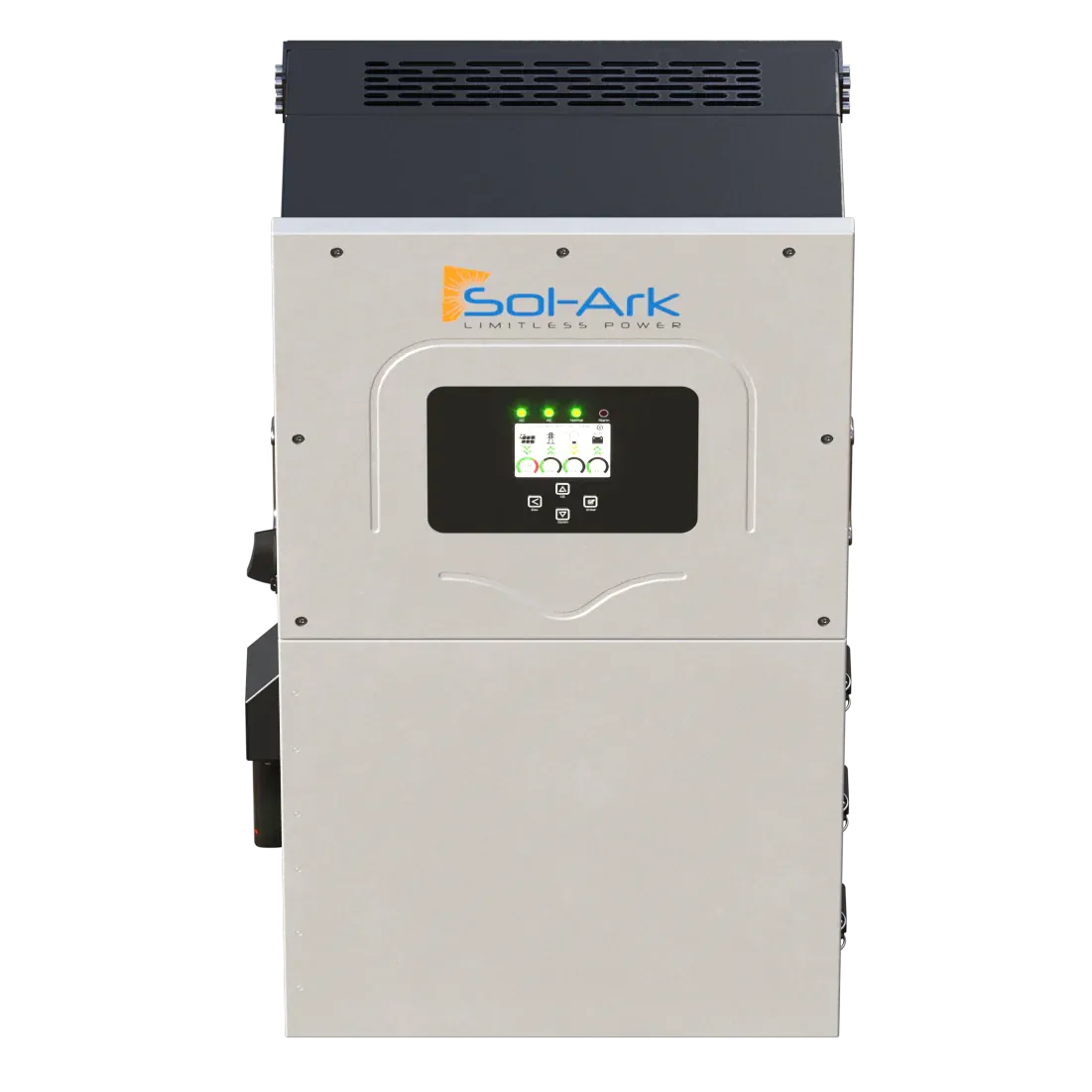

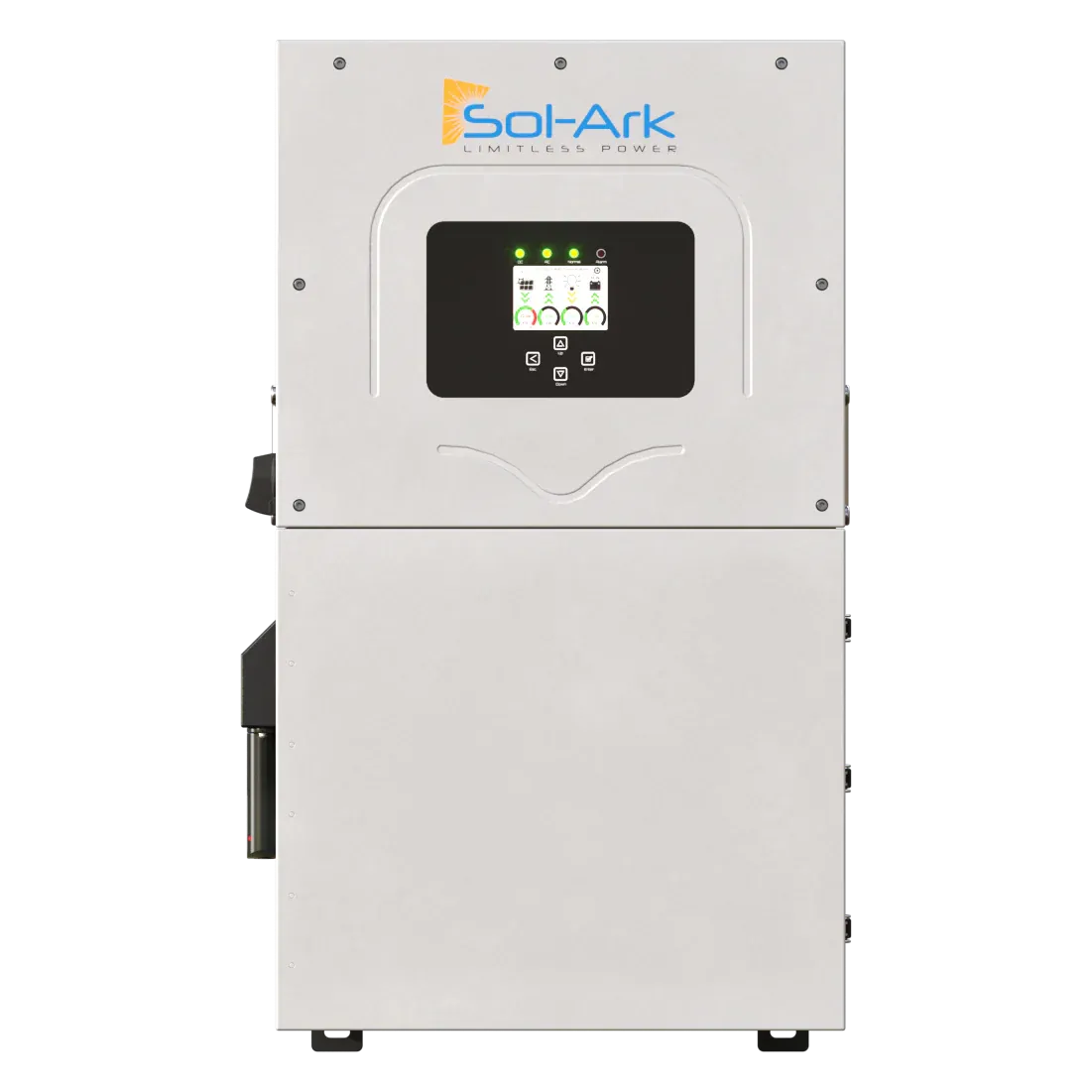

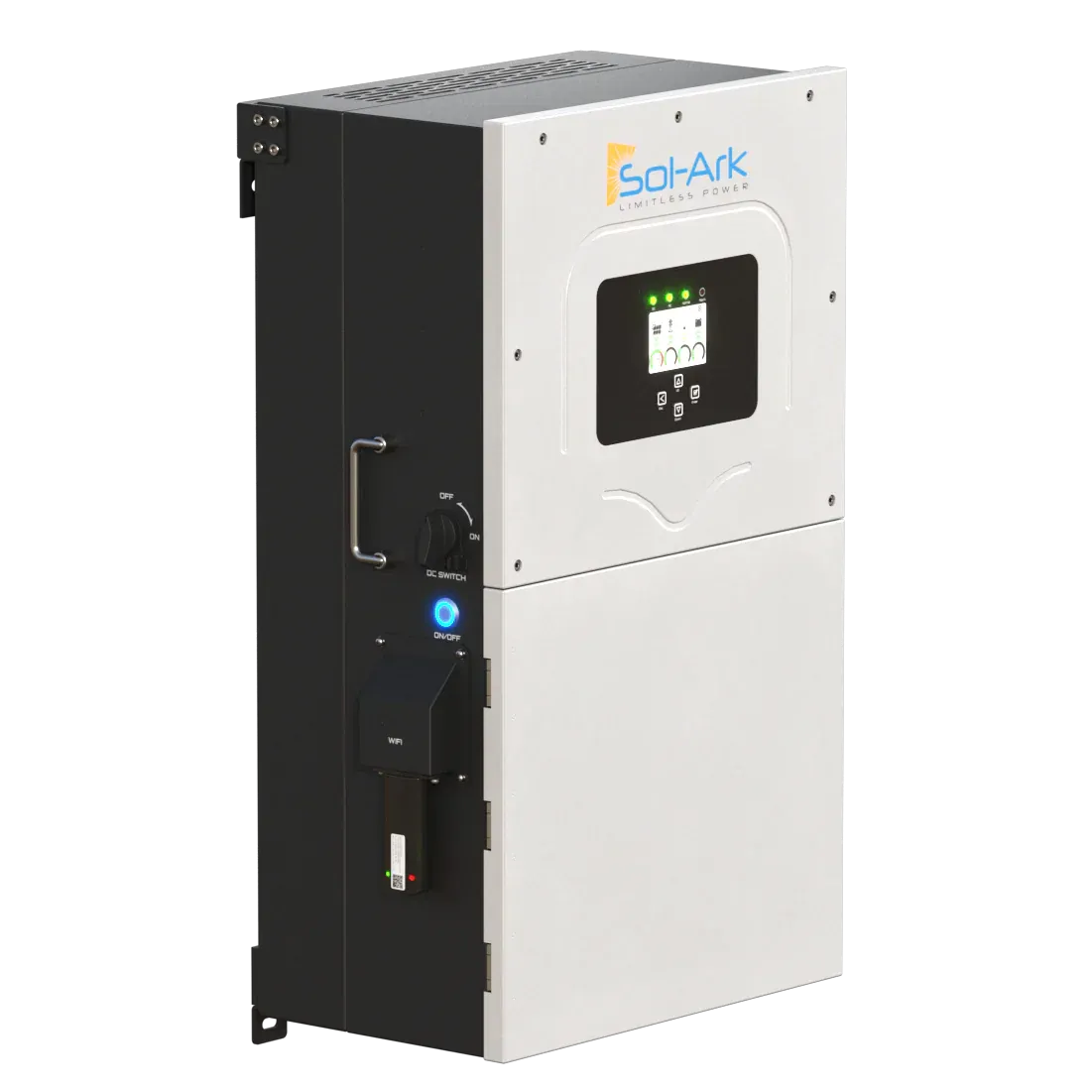

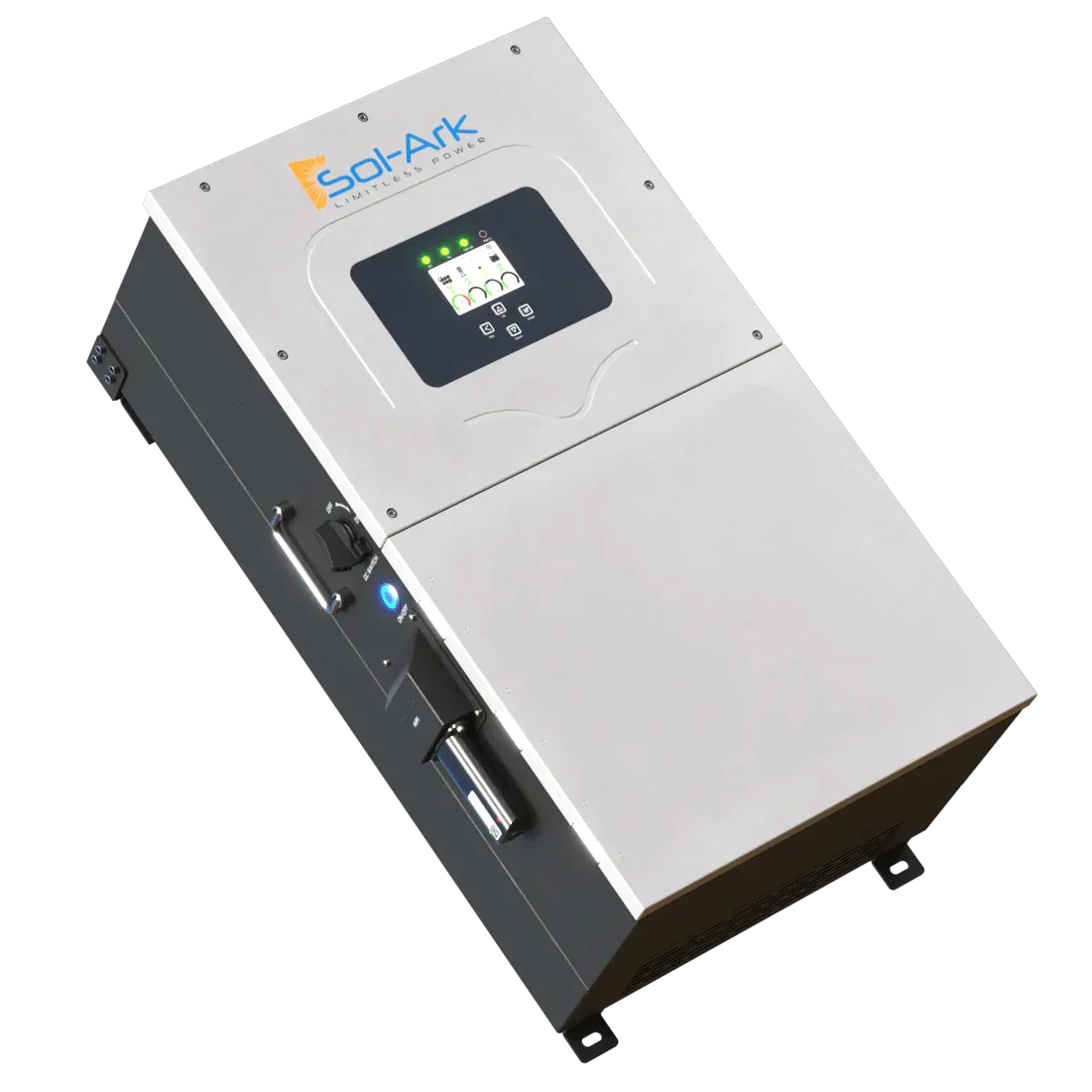

The SOL-ARK 15K Hybrid All-in-One Inverter is a remarkable and versatile system that delivers a continuous AC power output of 15,000W. Designed to handle robust surge power of up to 24,000W (10 sec.), this inverter is equipped with three on-board MPPT controllers and two 200A battery breakers. It offers exceptional scalability and can be utilized in both 120V/240V split phase and 120V/208V 3 phase service voltages, allowing for parallel stacking of up to twelve (12) units.
DOWNLOADS
Specifications:
- Max allowed PV DC Capacity: 19,500W
- Max PV power delivered to Battery & AC outputs: 15,000 Watts
- Max DC voltage: 500V@26A
- MPPT voltage range: 125-425V
- Max DC Current per MPPT (Self Limiting): 26A
- Continuous AC Power from PV: 15,000W 62.5A-L (240V)
- Continuous AC Power from Batteries: 12,000W 50A-L (240V)
- Frequency: 60/50Hz
- Communication to Lithium Battery: CanBus & RS485
- Nominal DC Input: 48V
- Capacity: 50 – 9900Ah
- Voltage Range: 43.0 – 63.0V
- Continuous Battery Charging Output: 275A
- Dimensions (H x W x D): 31.8” x 18.3” x 10.9”
- Weight: 135 lbs.
Features:
200A Feedthrough: Say goodbye to the need for a sub-panel for critical loads. The Sol-Ark 15k Inverter simplifies the setup by offering a 200A passthrough capability.
Parallel Stackable: Need more power? No problem. With the ability to connect multiple units, you can effortlessly increase your overall output.
Multiple Grid Modes: Enjoy the flexibility of grid-sell, meter zero, time of use, and peak shaving modes, allowing you to optimize your energy consumption and savings.
Smart Load Output: Make the most of excess power by automatically turning on loads when it’s available, ensuring efficient energy utilization.
Outdoor Rated NEMA 3R Enclosure: The Sol-Ark 15k is designed to withstand the elements with its durable and weather-resistant enclosure, ensuring reliable performance even in harsh conditions.
Closed-Loop LiFePO4 Communication: Benefit from enhanced communication capabilities with leading battery technologies, including closed-loop communication with LiFePO4 batteries.
AC/DC Solar Compatible: Enjoy the flexibility to work with existing micro-inverters or standard DC panels, allowing for seamless integration into your solar setup.
Generator Ready: Easily integrate a generator without the need for an additional transfer switch, enhancing the versatility of your power backup options.
Built-in Rapid Shutdown: Ensure compliance with safety regulations and simplify the installation process with the Sol-Ark 15k Inverter’s built-in rapid shutdown feature.
Remote Monitoring: Stay connected and informed with the ability to remotely monitor your inverter’s performance and energy production.
True All-In-One
Unlike competitors that claim to be all-in-one systems but require additional parts for code-compliance, the Sol-Ark 15k Inverter lives up to its promise. Everything you need is built-in, eliminating the need for extra breakers, fuses, combiner boxes, or rapid shutdown equipment.
Battery Agnostic
The Sol-Ark 15k Inverter is battery agnostic. For that reason, you can use it without batteries initially and add them later without any restrictions. From FLA to AGM and even lithium batteries. This inverter supports a wide range of options. Its closed-loop communication ensures seamless integration with leading battery technologies.
Easy Installation
Installation is made easy with the Sol-Ark 15k Inverter. Because it comes packaged with everything you need, your efficient setup process will be streamlined and efficient. Additionally, its compatibility with a wide range of battery chemistries sets it apart from other solar inverters that have restrictive battery requirements.
AC/DC Coupling
Another key feature, the Sol-Ark 15k supports simultaneous AC/DC coupling. This allows you to maximize your PV energy utilization without needing a larger array. This feature also reduces storage inverter costs while boosting the overall efficiency of your system!
